Ongoing

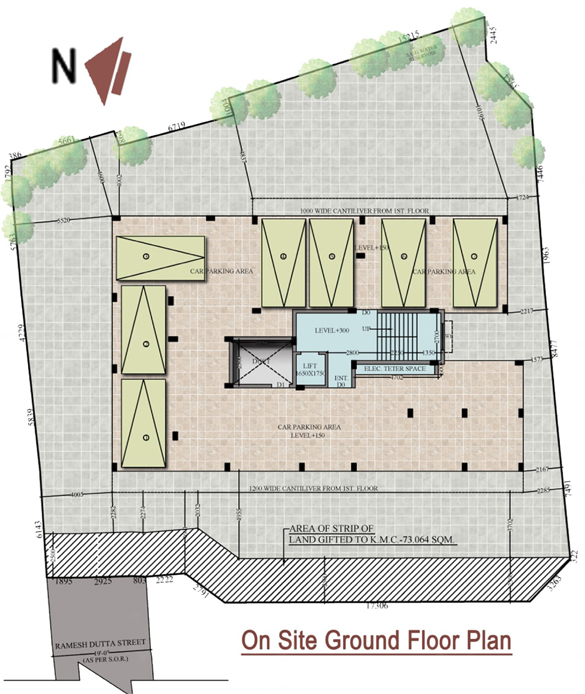

On Site Ground Floor Plan

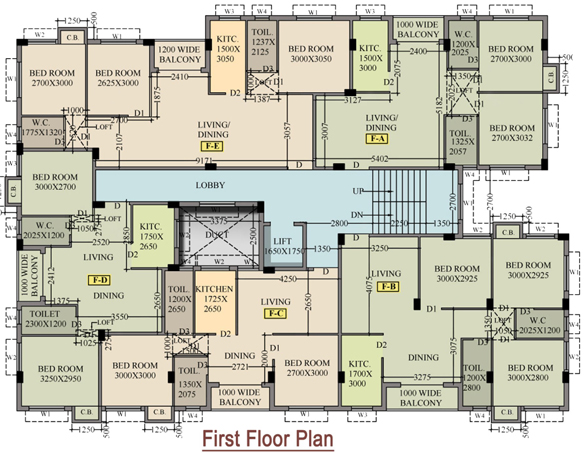

First Floor Plan

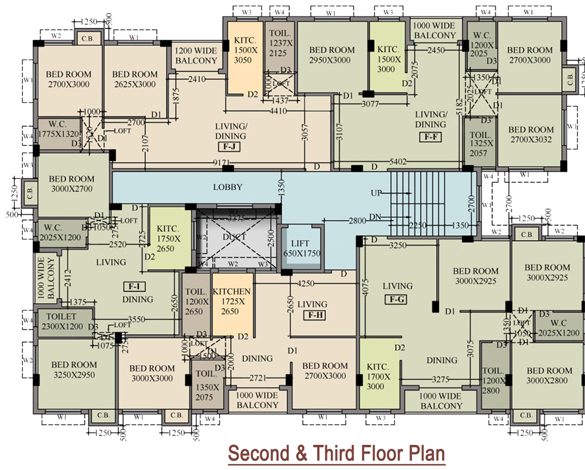

Second & Third Floor Plan

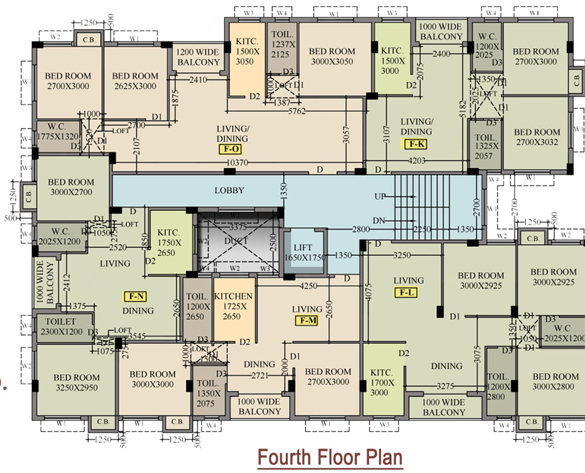

Fourth Floor Plan





Specifications



      • • Foundation structure: Structure to be constructed in R.C.C. as per structural plan of the Structural Engineer duly approved by The Kolkata Municipal Corporation. Steel of only ISI marked brands shall be used and cement of any leading national band shall be used.
      • • External & Internal Partition Walls: ll external walls to be 8 inches, internal walls to be in 5 inches and 3 inches made of AAC Bolcks.

        • Walls (finish): All walls to be finished with 1 Omm plaster and internal walls to be finished with plaster of parries/ Putti.
      • • Flooring:
        Apartments: Floors of Living, Dining, Bed room to be of good quality
        Ceramic Tiles. of size 4ft X 2 ft.
        Toilet: Anti skid tiles on floors
        Stair case & lobby: Marwar marble
        Garage: With design tiles.
        Pavement: Pavements to be done with design tiles. getup/designer tiles.
      • • Bathroom / Kitchen Fittings: To be fitted with Taps JAQUAR CP Sanitary CERA/PARRYWARE ceramic fittings and PVC cistern to match. One health faucet in each toilet.

      • • Plumbing: All internal water pipe lines to be Concealed pvc pipes Supreme and hot lines with G. I. Pipes of Jindal/ Tata etc. Sewage pipes of rain water pipes to be of good quality SUPREEM or equivalent brand.

        • Electrical:
        All wires to be laid concealed .Switches of Havells Make, two light, one fan, one combined electrical point in every room.
        Living/dinning room to be provided with additional line fan, telephone and cable T. V.
        Kitchen to be provided with two light, one point for exhaust fan, one 5 Amp and one 15 Amp plug point.
        Bathrooms to be provided with two light points, one exhaust point and one geezer point.
        Balcony to be provided with one light point.
        One A.C. point, calling bell point.

        • Kitchen:
        Kitchen to be provided with good quality good quality Ceramic Tiles.
        Granite counter with steel sink with a long nose tap and inbuilt shelves.
        Glazed tiles upto the height of 4 ft shall be provided above the kitchen counter.

        • Bath / Toilet:
        Toilets to be provided with one wash basin, one Western or Indian pan and three tap water points.
        Glazed tiles of good quality to be fitted on walls upto a height of 6 ft 6 inches. Provision for Washing machine.

        • Doors & Windows :
        Door frame of seasoned good quality SAL wood and panels of good quality flush doors of Century(Sainik) or equivalent to be provided. Every door shall be provided with aluminum hatch bolt and tower bolts and mortis lock. Main door shall be provided with good quality hatch bolt .
        All windows to be made of good quality ALLUMINIUM shutter fitted with clear glass, with matching steel grills.
      • • Roof: Roof to be finished with roof tiles and water taps.
      • • Painting: Doors and window grills to be painted with good quality synthetic enamel white paint. The outer walls of the building shall be painted with cement based paint of WEATHER COAT or equivalent make.

      • • Common Facilities: Common facilities shall include the following -
      • • Boundary wall: The entire premises shall be bounded by a strong boundary wall of 5ft height (approx) with one decorative steel gate.
        • Common toilet / bath on the ground floor for helping hands, drivers, security guards etc.
        • LIFT
        • Room for security guards
        • Generator to provide 4 electrical lines for light and fan for every apartments during power cuts will be provided at the common expenses of the Vendors and the Purchasers.
        • Roof shall be common to all apartments.
        • Intercom will be provided at the common expenses of the Vendors and the Purchasers.
